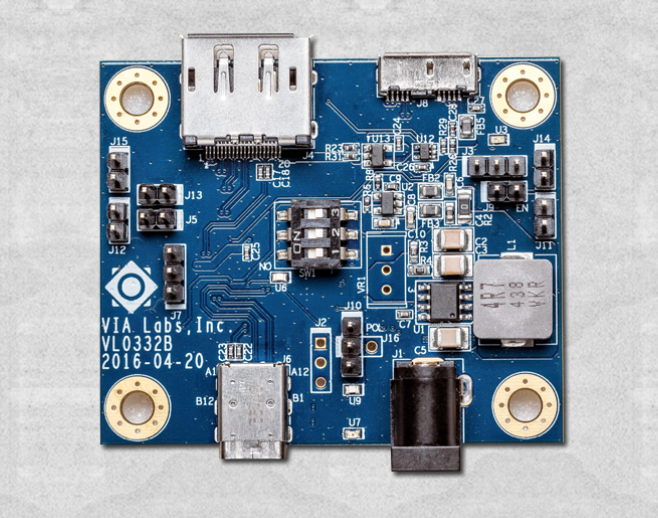

VL170 - 4x6 Crossbar Switc

Description

VL170 is using crossbar switch between 4 lanes DisplayPort source input and 2 lanes USB 3.1 host input to USB-C connector, for Mux switch signal performance supports up to USB 3.1. VL170 integrated internal low drop regulator with 3.3V supply voltage, and using QFN-28 3.5x4.5mm Green package.

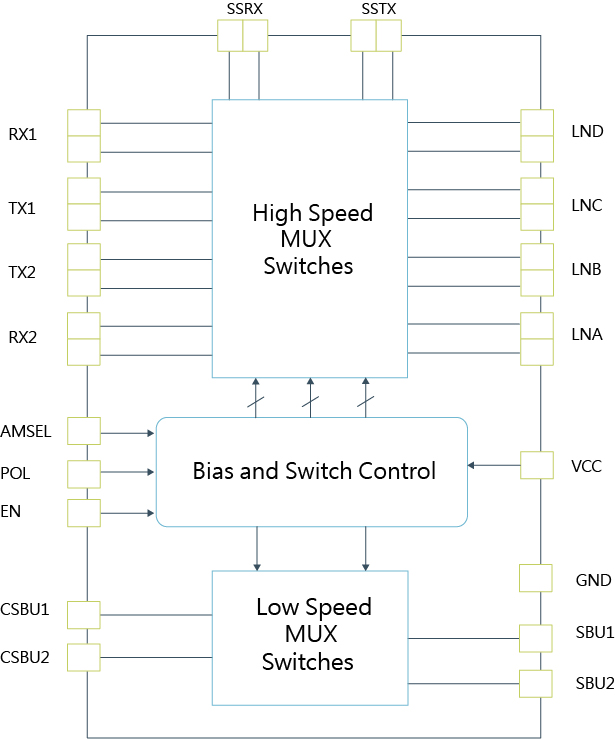

Block Diagram

Key Features

• Compatible with USB3.1 and AM all 4Ch Video based on control pin VASEL, including 8.1 Gbps DisplayPort 1.3a

• VCC = 3.3V ± 10% single power supply

• Low power consumption with 0.5mA active and 4uW shutdown

• High DC common mode voltage supporting to 2.2V

• 28 pins QFN 3.5 x 4.5mm package

• ESD > 4KV, CDM > 500V

• MUX
  - Insertion loss: 2.7dB @ 5GHz typ.
  - Return loss: 6.5dB @ 5GHz typ.
  - Crosstalk Isolation: 40dB @ 5GHz typ.
  - Off Isolation: 25dB @ 5GHz typ.
