General Description

The G5130 boost converter is designed for use of main power source on portable equipments.

It consist of an oscillator, PSM control logic circuit, an embedded power MOS (LX switch), accurate voltage reference, error amplifier, feedback resistors, and LX protection circuit.

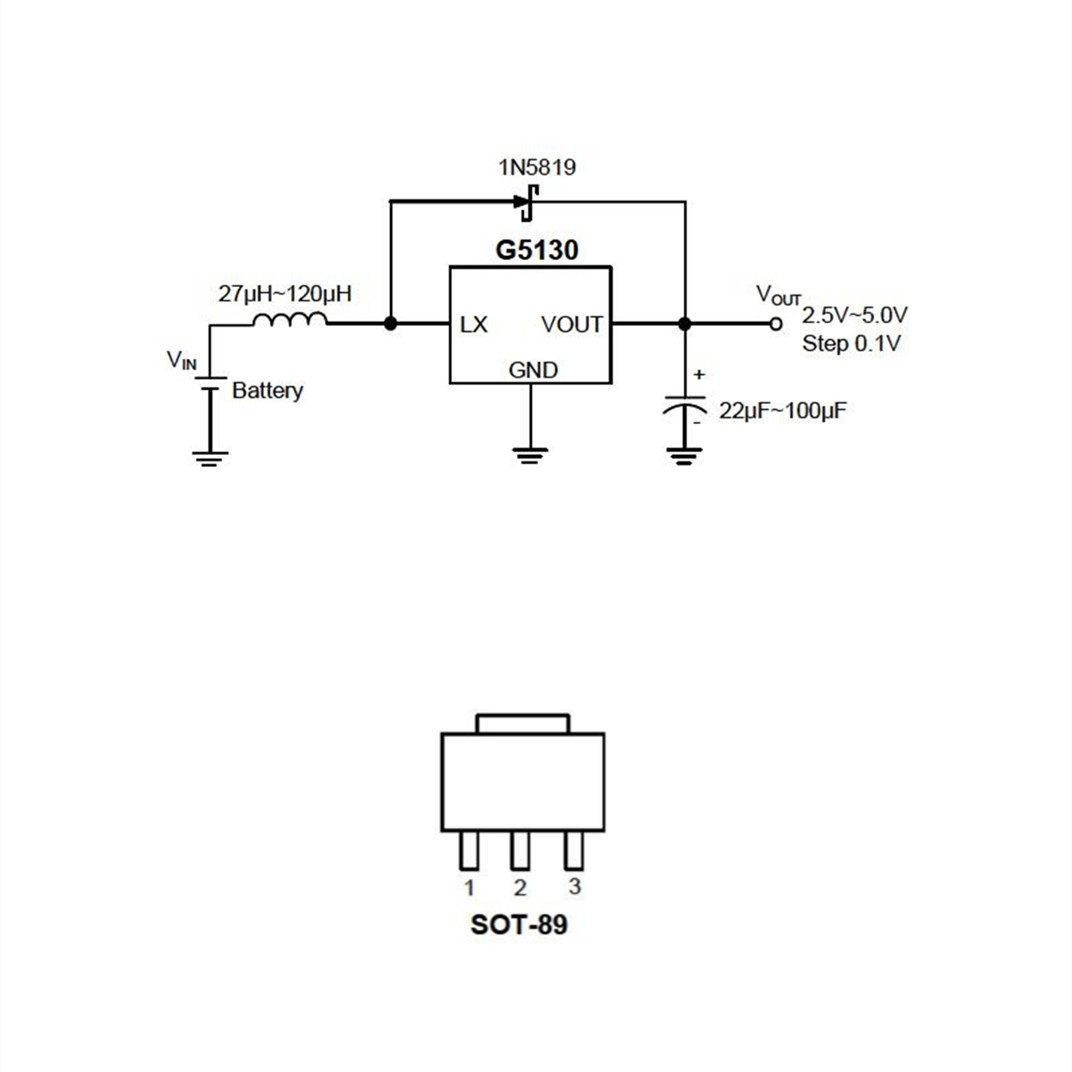

Only 3 external components (includes 1 inductor, 1 diode and 1 capacitor) are needed to construct the power application.

For larger output power application, G5131 can be used to drive an external NPN device for more input current.

Features

■ 1~4 Cell Alkaline Battery Operating Range

■ Output Voltage Range: 2.5V~5.0V in 0.1V Increments

■ Minimum External Component (L, D, C)

■ 100kHz Max. Oscillation Frequency

■ 75% Duty Ratio

■ Up to 80% Efficiency

■ ±2% High Output Voltage Accuracy

■ < 100ppm/°C Temperature Coefficient

Applications

■ Power Source for Portable Equipments

■ Handheld Computers, Palmtops

■ Digital Still Cameras, Camcorders

■ Cellular Phones, Pagers

■ Portable Multimedia Players
