| 型號： | G948C3330T11G |
| 廠 商： | |
| 品牌/商標: | GMT/致新 |
| 產品類別： | GMT- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
深圳熱銷中 致新科技 G948C3330T11G 低壓差線性穩壓器
General Description
The G948 is a low-supply current, low-dropout linear regulator. An over-temperature protection circuit is built-in in the G948 to prevent thermal overload. These power-saving features make the G948 ideal for use in a battery-powered application such as notebook computers, and portable devices.
These devices feature a shutdown function and are offered in active low with auto discharge. The G948 is specifically designed for ceramic output capacitors.
The G948 comes in a space-saving SOT-23-5, TSOT23-5, SC70-5 and TDFN2x2-6packages

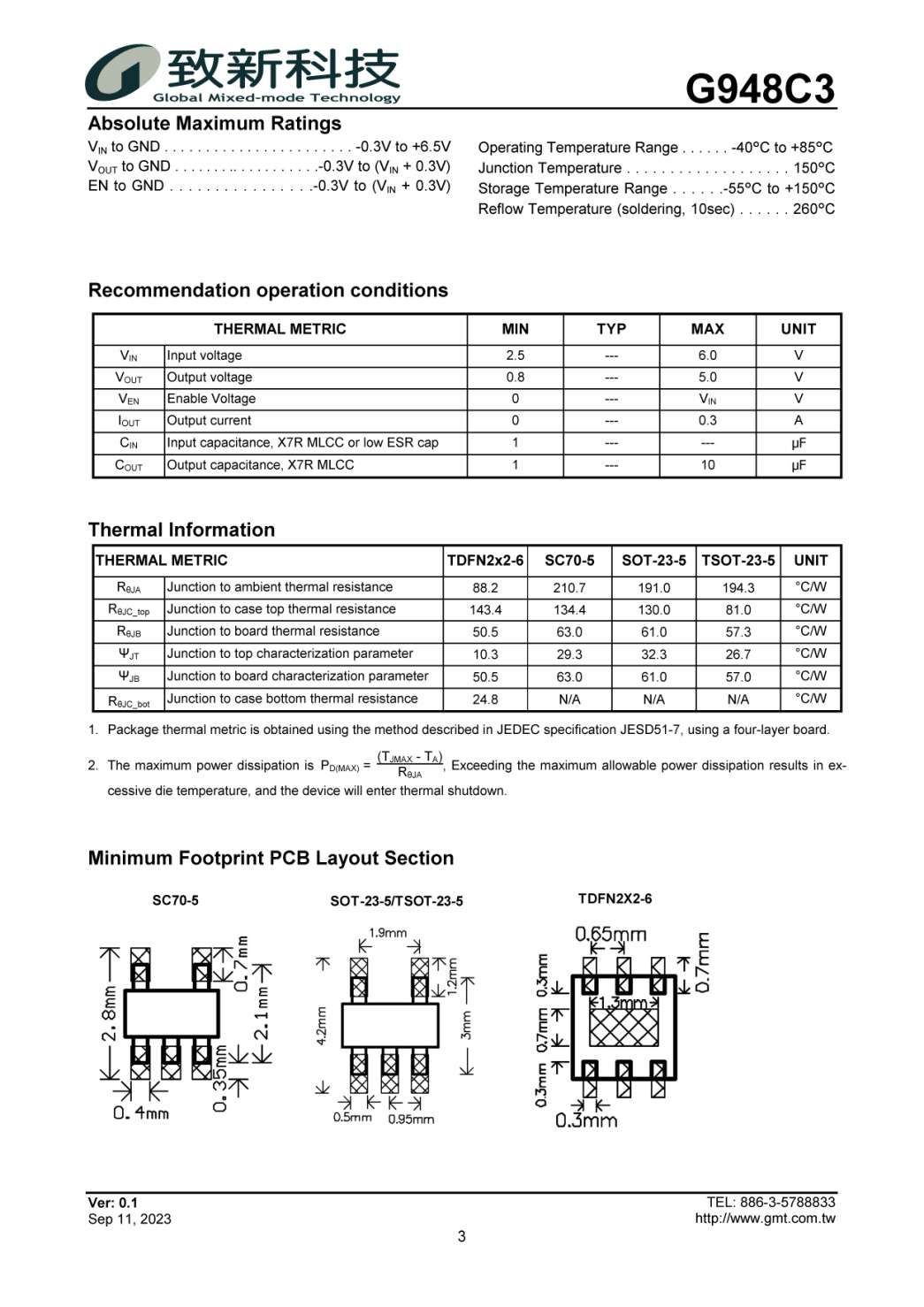

Absolute Maximum Ratings
VIN to GND: -0.3V to +6.5V
VOUT to GND: -0.3V to (VIN + 0.3V)
EN to GND: -0.3V to (VIN + 0.3V)
Operating Temperature Range: -40°C to +85°C
Junction Temperature: 150°C
Storage Temperature Range: -55°C to +150°C
Reflow Temperature (soldering, 10sec) : 260°C
