| 型號： | ETA5053V300WD1E |
| 廠 商： | 中國 |
| 品牌/商標(biāo): | ETA（鈺泰） |
| 產(chǎn)品類別： | 鈺泰/ETA- |
| 聯(lián)系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
ETA5053V300WD1E 電子元器件 ETA鈺泰 封裝DFN1x1-4
70dB PSRR, Low Noise, Fast Response 300mA LDO in DFN1x1 and SOT23-5
ETA5053 is a fixed output, low-dropout (LDO) low-power linear voltage regulator features high power-supply rejection ratio (PSRR), ultralow-noise, fast start-up, and excellent line and load transient responses. Its PSRR can be as high as 70dB with quiescent current is about 35uA.
Features
High PSRR, 70dB
300mA Output Current
Stable with a Wide Range of Ceramic Capacitor
Excellent Load and Line Transient Response
24V Dropout Voltage for 200mA at Vout=3.3V
35uA Iq

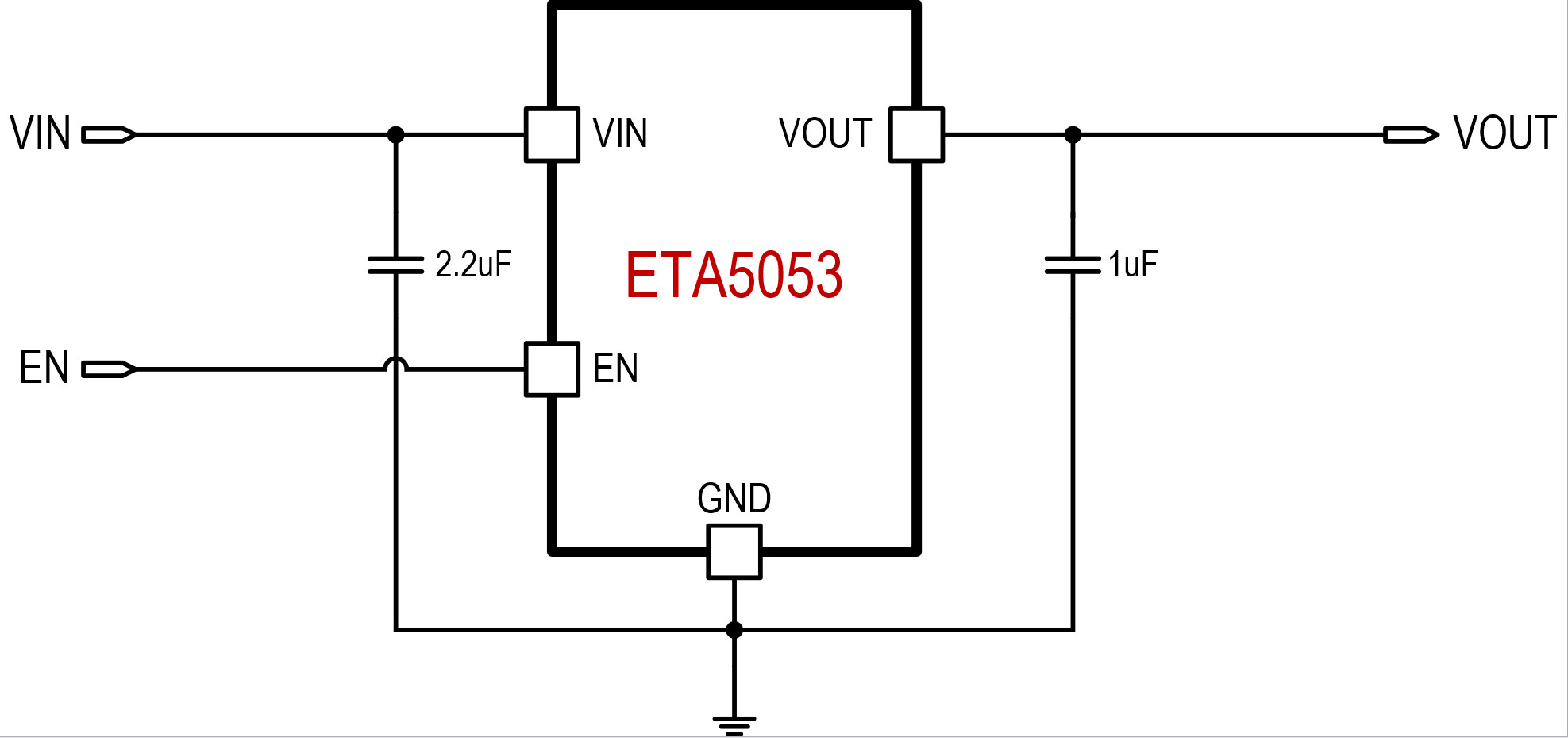

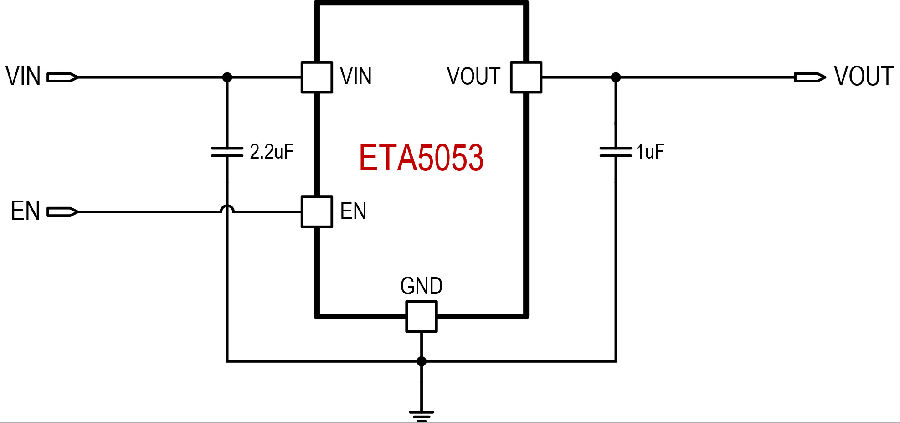

應(yīng)用電路圖：
