| 型號： | VL160 |
| 廠 商： | 臺灣 |
| 品牌/商標: | 威盛（VIA） |
| 產品類別： | VIA- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
VIA威盛原裝進口電源方案VL160--帶USB C型數據交換機，深圳科瑞芯現貨熱銷
產品型號：VL160
包裝：3000pcs/盤
封裝：QFN-28
產品特性：
4:2 10Gbps USB Type-C Data Switch
Support up to 10Gbps
2 Differential Channel, 2:1 MUX/DeMUX
Compatible with 10Gbps USB3.1 Gen2
Low power consumption with 0.5mA active and 4uW shutdown
High DC common mode voltage supporting to 2.2V
28 pins QFN 3.5 x 4.5mm package
ESD > 4KV, CDM > 500V
Lead(Pb)-Free and RoHS compliant
MUX
– Insertion loss: 1.5dB @ 5GHz typ.
– Return loss: 15dB @ 5GHz typ.
– Crosstalk Isolation: 30dB @ 5GHz typ.
– Off Isolation: 15dB @ 5GHz typ.
CC Functional
– Define Role: Device (UFP, default) or Host (DFP)
– Plug Orientation: Flipped or Not, and control Switch SEL
– (UFP) Current Capability Detect: 3.0A, 1.5A, or 0.9A
– (UFP) Rd
– (DFP) Rp (or Ip), Vconn SW if Ra
– (DFP) VBUS_EN to turn on Host VBUS SW
Vconn
– 5V, max Power is 1W, max current is 250mA
– Over current protection

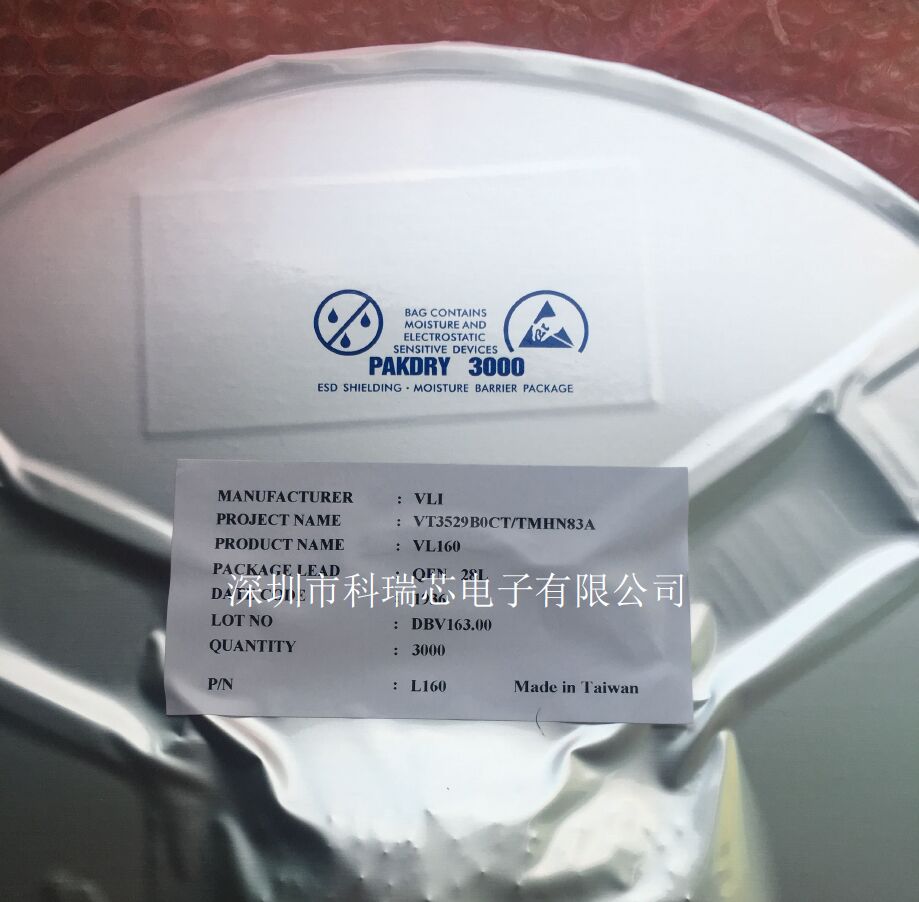

產品實拍圖：
