| 型號： | VL152C |
| 廠 商： | 臺灣 |
| 品牌/商標: | VIA威盛 |
| 產(chǎn)品類別： | VIA- |
| 聯(lián)系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
VL152 E-Marker for USB-C/ TBT3 Passive Cable.
1、Easy Manufacturability
– DFN-8 2x3mm features 0.5mm pin pitch for easy manufacturing
– WLCSP-6 with 0.4mm pin pitches to minimize paddle card size.
– Compatible with standard PCB Process
– Programming Support over CC or SMBus
– Extremely Low BOM Cost: Diodes, Ra are all integrated On-Die
– Compatible with Third-Party Programming Tools
2、DMTP Memory Onboard
– Supports double times writable memory to store Cable VDO, Certification Status VDO, Product
VDO, etc.
– Features write-protection support so finished cables cannot be modified
– DMTP memory is the best choice for data-retention and longevity
3、Applications
– USB Type-C Cables such as Full-Featured C-to-C cables
– Passive Thunderbolt cable
4、Misc.
– CC, Vconn1 and Vcoon2 pin short to Vbus protection
– Automatic Ra weakening to reduce power consumption
– Optimized for Low Power consumption
– RoHS compliance and HF compliance

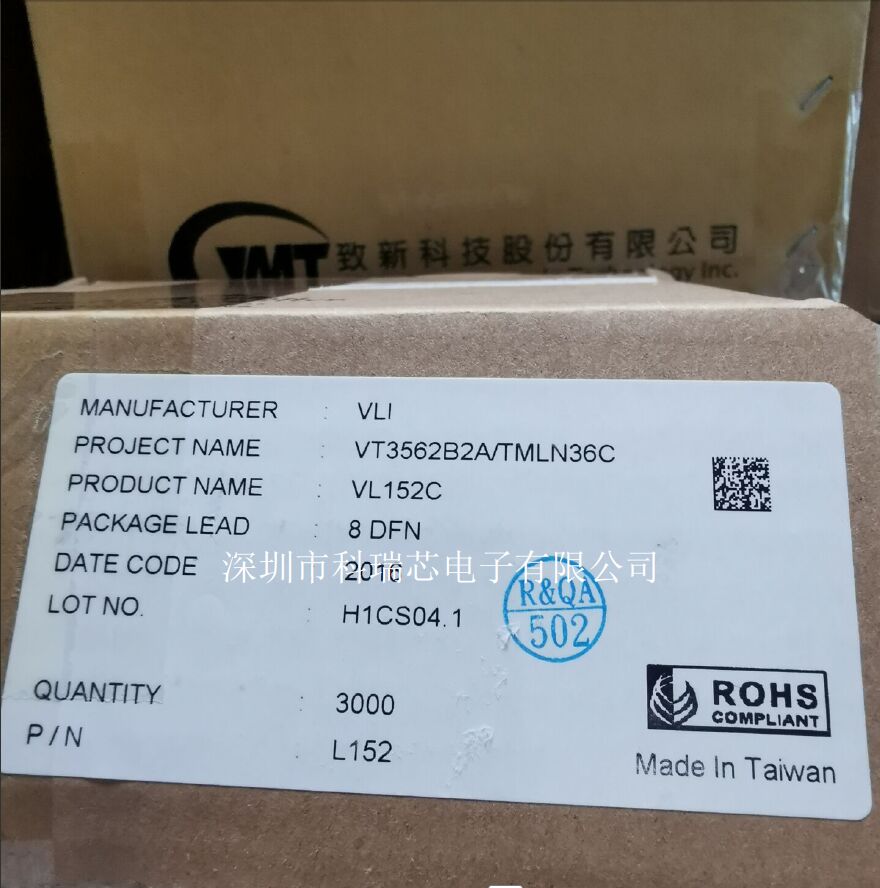

產(chǎn)品實拍圖：
