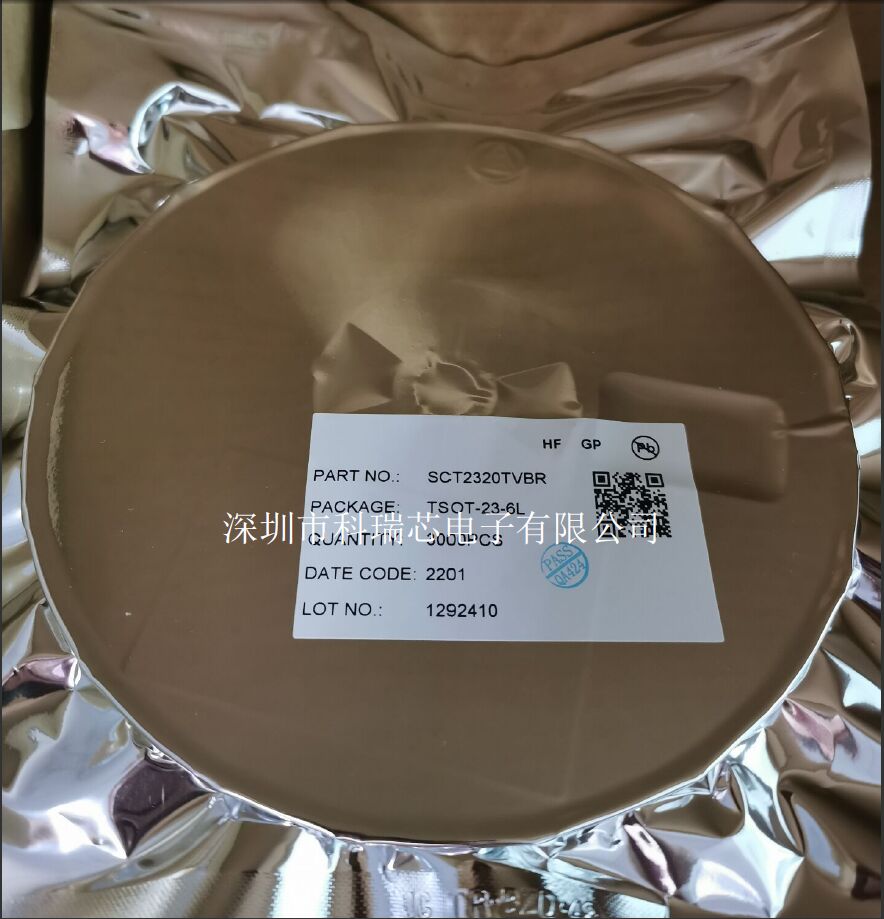

| 型號： | SCT2320 |
| 廠 商： | 中國 |
| 品牌/商標(biāo): | SCT |
| 產(chǎn)品類別： | 集成電路/IC- DC/DC電源芯片 |
| 聯(lián)系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
SCT2320 3.8V-32V Vin, 2A EMI降低的同步降壓DCDC變換器
FEATURES
EMI Reduction with Switching Node Ringing-free
500kHz Switching Frequency with 6% Frequency Spread Spectrum FSS
Pulse Skipping Mode PSM with 20uA Quiescent Current in Light Load Condition
3.8V-32V Wide Input Voltage Range
Up to 2A Continuous Output Load Current
0.8V ±1% Feedback Reference Voltage
Fully Integrated 130mΩ Rdson High Side MOSFET and 70mΩ Rdson Low Side MOSFET
1uA Shut-down Current
80ns Minimum On-time
Precision Enable Threshold for Programmable UVLO Threshold and Hysteresis
Low Dropout Mode Operation
4ms Built-in Soft Start Time
Output Over Voltage Protection
Thermal Shutdown Protection at 160°C

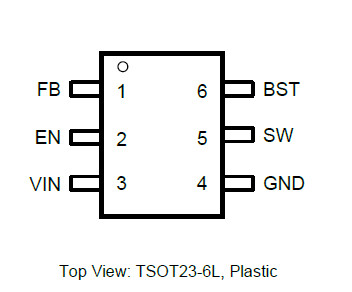

Available in TSOT23-6L Package
