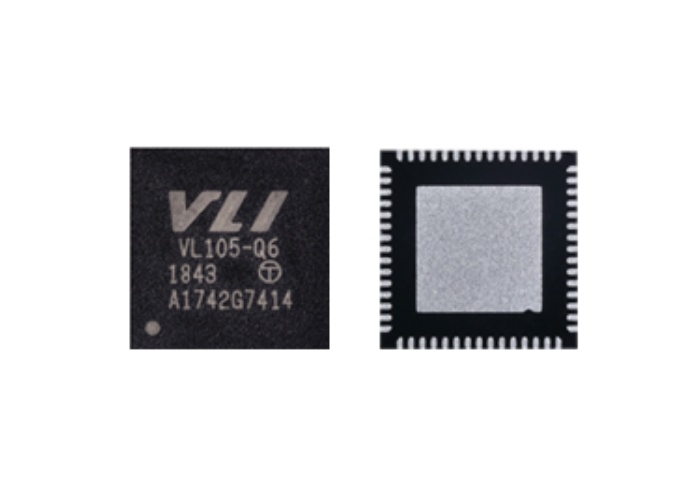

VL105-Q6 威盛原裝芯片 采用QFN-60封裝

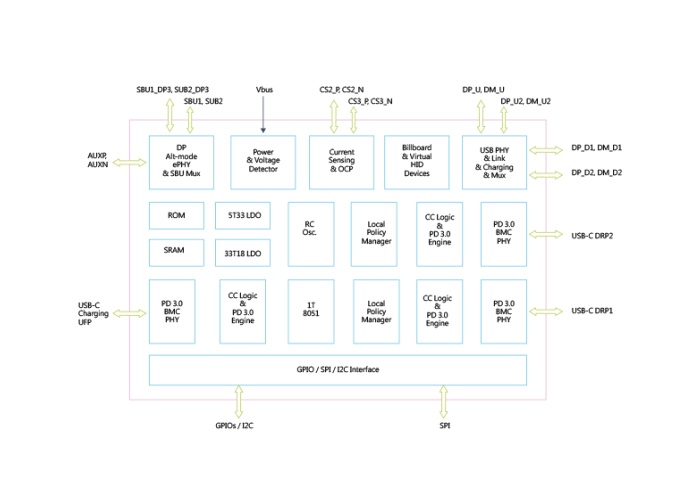

Key Features

● CC Logic & PD 3.0 Engine supporting one charging UFP and two DRP DFPs

- Compliant to USB Type-C Cable and Connector Specification Revision 1.3

- Compliant to USB Power Delivery Specification  Revision 3.0 Version 1.1

- Integrated Type-C transceivers, supporting one charging UFP and up to two DRP DFPS

- Built-in pull-up/pull down resistors, including Rp, Rd

- Built-in Vconn power switch

●DP Alt-mode Configuration and SBU Switch

- Compliant to VESA DisplayPort Alt Mode on USB Type-C Standard Version 1.0a

- DP mode Discovery/Enter/Exit; DP configure, status update, source/sink connection detection

- Built-in AUX/SBU switch for DP Alt-mode or USB-C analog audio

●USB-C Charging UFP Capability

- Charging connected PD hosts once external power is available

- Supports Provider and Consumer roles

- Supports PD Power Rule up to 100W

- Supports dead battery charging and PD 3.0 Fast Role Swap

●Two USB-C DRP DFPs Capability

- Supports Provider and Consumer roles

- Supports PD Power Rule up to 100W as Sink and 15W as Source

- Either DFP port can charge host (as sink) by first- plugin-first-serve basis, the other port is then set to source mode only

-Built-in D+/D- Charging ePHY for chargers using D+/D- as protocol handshake

●USB Interface and USB Billboard Device

- USB Billboard compliant to USB Device Class Definition for Billboard Devices Revision 1.21

- Integrated in-house USB 2.0 Full-speed PHY

- Proprietary design for interchangeable charge through audio to select USB routing by first- plugin-first-serve basis

●Fast 8051 Macro Cell 80C32-Compatible Microcontroller

- Standard 1T 8051 instruction set with embedded Mask ROM and SRAM

- Supports external SPI flash or sharing SPI flash with VLI Hub controller for firmware upgrade

●Built-in Oscillator, Voltage Regulators, Voltage Detector, and Current Detector

- Built-in trimmed RC oscillator

- 5.0V-to-3.3V LDO and 3.3V-to-1 ,8V LDO

- Vbus Voltage Detector and Vbus Current Detector for monitoring power safety

●Smart Auto-standby

- Automatically entering deep power saving mode when connected interface is in idle state

●GPIOs for Special Function and Control

- 15 GPIOs on QFN60 and 11 GPIOs on QFN48 for application customization and one I2C master interface

●Physical

- QFN 60 green package (7x7x0.85 mm) for VL105-Q6/VL105H-Q6

- QFN 48 green package (6x6x0.85 mm) for VL105-Q4/VL105H-Q4 (pin compatible to VL103-Q4)

●Certification

- VL105 TID: 39, ID: 35048 ; VL105H TBD

●Applications

- USB-C charge through dongle or Multi-function dongle with any port charge through

- USB-C interchangeable charge through audio dongles

●VL105 Supports QC-to-PD Charge Through VL105H Supports Huawei SCP/FCP to PD Charge Through
