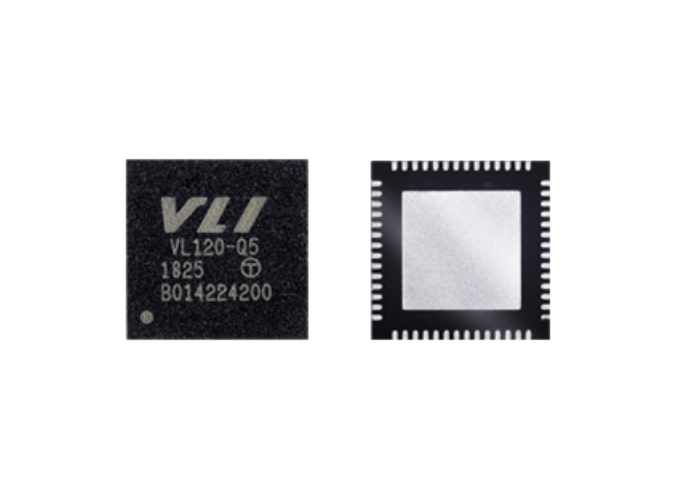

威盛原裝現(xiàn)貨 VL120-Q5 USB集線器控制器芯片

Key Features

● USB 2.0 Compliant

- Compliant to USB 2.0 Specification

- USB 2.0 Hub Supports MTT

- In-house USB PHY employs advanced CMOS process for low power consumptionUSB Type-C 1.0 Rev 1.3 Compliant

- Compliant to USB Type-C Specification Rev 1.3

- Compliant to USB Type-C Port Controller Interface Specification Rev 2.0

- Supports up to 2x Independently Configurable TCPCUSB Power Delivery 2.0/3.0

- Compliant to USB Power Delivery 2.0 Specification Rev 2.0

- Compliant to USB Power Delivery 3.0 Specification Rev 1.2

- Supports Fast Role Swap

- Supports USB-C Bridge

● Integrated USB Devices

- USB HID Class Device (Optional)

- Implemented as a USB 2.0 Virtual Device, Facilitates FW Update or Media Control Buttons

- Configurable Behavior – Always Present / Disabled

- USB Billboard Class 1.21 Device (Optional)

- Implemented as a USB 2.0 Virtual Device

- Configurable Behavior – Expose When Necessary / Always Present / Disabled

- USB-C Bridge Class Device (Optional)

- Implemented as a USB 2.0 Virtual Device; Facilitates USB to PD Bridge Functionality

- Configurable Behavior – Always Present / Disabled

●Full Sideband Signal Support

- Supports both Individual and Ganged Mode Operation for All Ports

- Supports PWM LED Status Lights

- SPI Interface for Firmware. Firmware Upgradable over USB

- Management Interface for Specialized Applications

● Full Sideband Signal Support

- Supports both Individual and Ganged Mode Operation for All Ports

- Supports PWM LED Status Lights

- SPI Interface for Firmware. Firmware Upgradable over USB

- Management Interface for Specialized Applications

● Comprehensive USB Battery Charging Support

- Supports USB Battery Charging Specification v1.2 (SDP, CDP, DCP)

- Supports Stand-Alone Charging when System is Suspend, Shut Down, or Disconnected

- Any Combination of DFPs can be Configured to Support USB Battery Charging

● Power and Package

- Requires 3.3V and 1.8V Inputs

- 25MHz Xtal

- Integrated Voltage Regulators Generate All Required Voltages from 5V Input

- 5V to 3.3V LDO Regulator

- 5V to 1.8V LDO Regulator

- QFN 76L green package (9x9x0.85 mm)

- QFN 68L green package (8x8x0.85 mm)

- QFN 56L green package (7x7x0.85 mm)
