微源芯片 LP3985-12B3F 300mA LDO穩(wěn)壓器

General Description

The LP3985 is designed for portable RF and wireless applications with demanding performance and space requirements. The LP3985 performance is optimized for battery-powered systems to deliver ultra-low noise and low quiescent current.The LP3985 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The other features include ultra-low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. It is available in the 5-lead of SOT23-3and SOT89-3 packages.

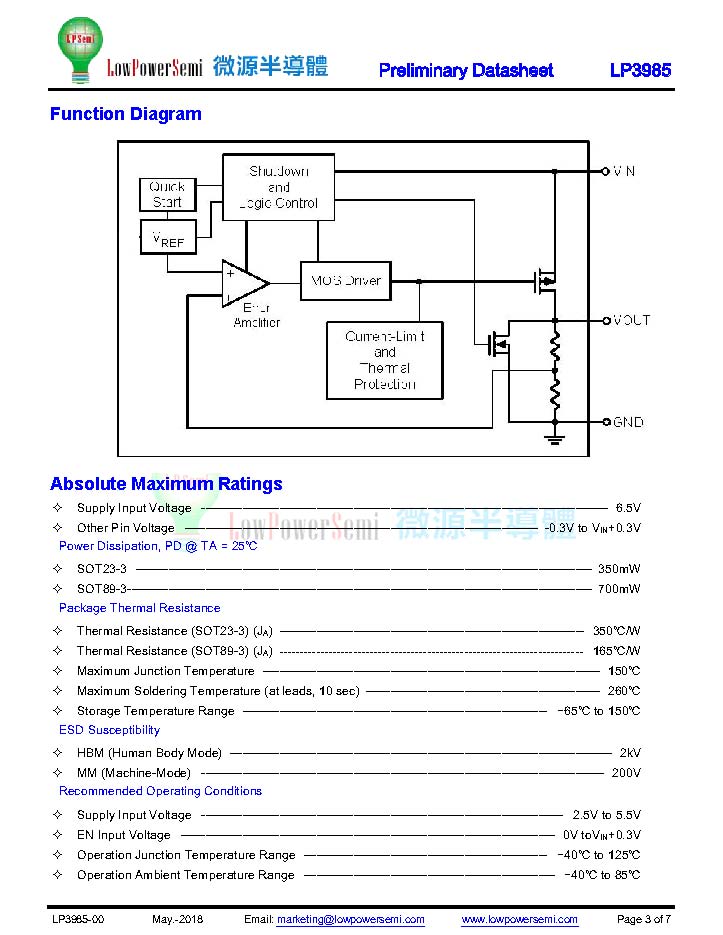

Absolute Maximum Ratings

◆ Supply Input Voltage: 6.5V

◆ Other Pin Voltage: -0.3V to VN+0.3V

Power Dissipation, Po @TA=25℃

◆ SOT23-3: 350mW

◆ SOT89-3: 700mW

Package Themal Resistance

◆ Themmal Resistance (SOT23-3) (a): 350℃W

◆ Themal Resistance (SOT89-3)) (Uc): 165℃/W

◆ Maximum Junction Temperature: 150℃

◆ Maximum Soldering Temperature (at leads, 10 sec): 260℃

◆ Storage Temperature Range: -65℃ to 150℃

ESD Susceptility

◆ HBM (Human Body Mode): 2kV

◆ MM (Machine-Mode): 200V

Recommended Operating Conditions

◆ Supply Input Voltage: 2.5V to 5.5V

◆ EN Input Voltage: 0V toVw+0.3V

◆ Operation Junction Temperature Range:  -40℃ to 125℃

◆ Operation Ambient Temperature Range: -40℃ to 85℃
