熱銷中 LP3990A-10QVF 微源300mA LDO穩(wěn)壓器

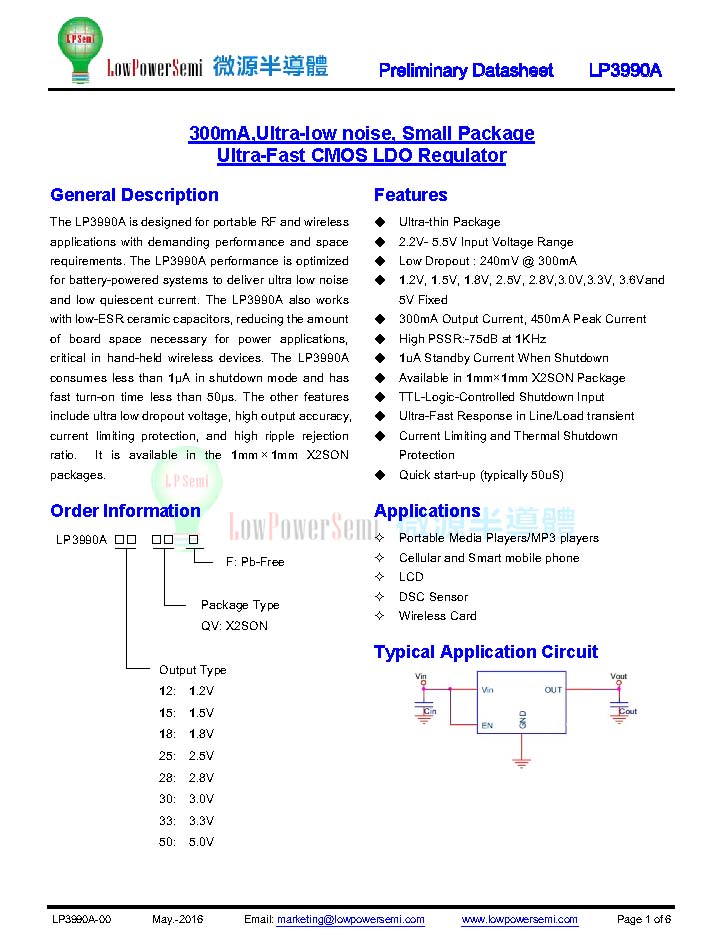

General Description

The LP3990 is designed for portable RF and wireless applications with demanding performance and space requirements. The LP3990 performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. The LP3990 also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The LP3990 consumes less than 0.01μA in shutdown mode and has fast turn-on time less than 50μs. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. It is available in the 1mm×1mm x2 SON packages.

Applications

◆ Portable Media Players/MP3 players

◆ Cellular and Smart mobile phone

◆ LCD

◆ DSC Sensor

◆ Wireless Card
