GL9901N-OJY10 創(chuàng)惟USB 3.2 10 Gbps重驅(qū)動(dòng)芯片

GENERAL DESCRIPTION

Genesys GL9901 is a low-power 2-channel 10 Gbps linear redriver. It is compliant with the USB 3.1 specification. GI 9901 provides programmable equalizer, DC gain controller and output swing controller to compensate for the channel loss, and extends the length and enables the systems to pass USB compliance. The device optimizes performance when USB signals travel across PCB and cables, signal integrity degrades due to loss and inter-symbol interference.

GL9901 offers single supply voltage 3.3V with ultra low power consumption. Each channel operates independently. The advanced power management of GI 9901 can consume ultra low power when the channel is idle for a longer time.

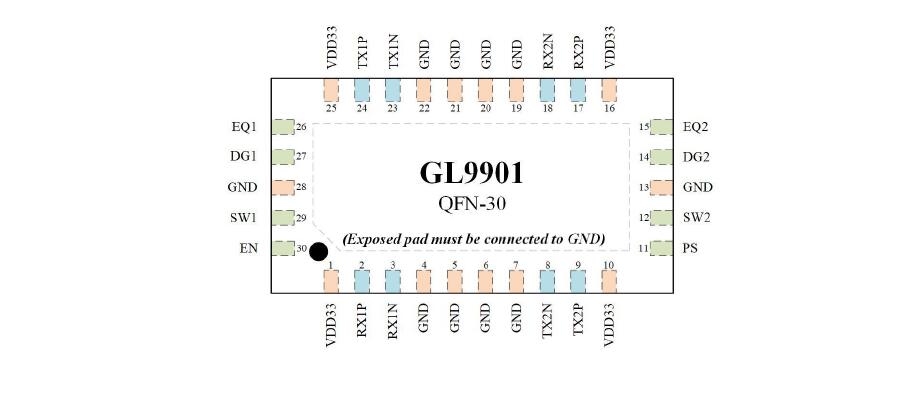

All available packages for GL9901 are listed in the following table.

Applications

● Desktop and notebook PC

● Cellular phones

● Tablet

● TVs

● Active cable

● Docking stations
