| 型號： | ZPCT002M471S |
| 廠 商： | |
| 品牌/商標(biāo): | ZOWIE/智威 |
| 產(chǎn)品類別： | ZOWIE- 肖特基二極管 |
| 聯(lián)系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |

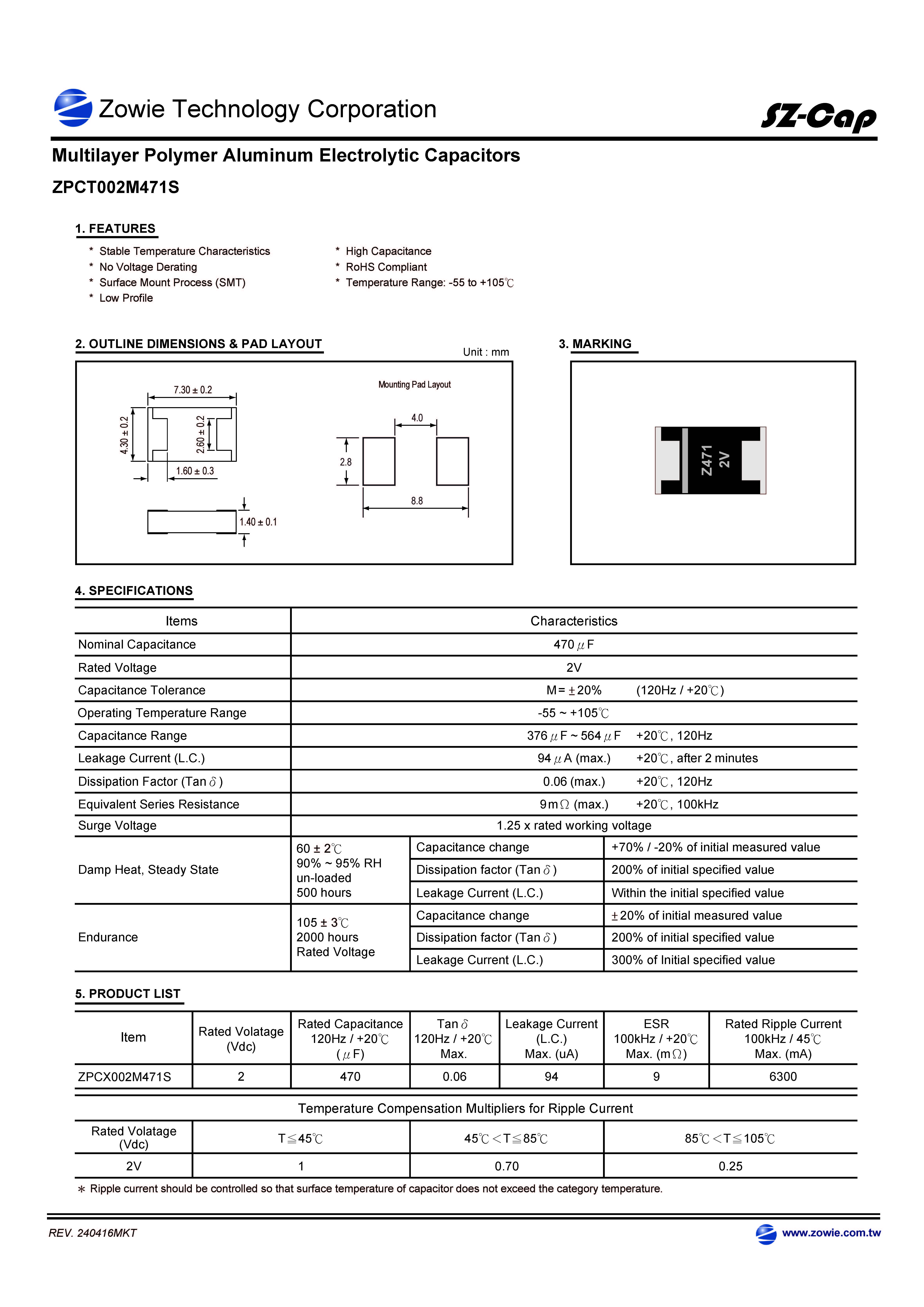

智威鋁電解電容器 ZPCT002M471S 貼片封裝SMT
FEATURES
* Stable Temperature Characteristics
* No Voltage Derating
* Surface Mount Process (SMT)
* Low Profile
* Low ESR (6 mΩ max.)
* High Capacitance
* RoHS Compliant
* Temperature Range: -55 to +105℃
PRODUCT LIST
* Rated Volatage(Vdc): 2
* Rated Capacitance 120Hz / +20℃(μF): 330
* Tan δ 120Hz / +20℃ Max:0.06
* Leakage Current (L.C.) Max. (uA):66
* ESR 100kHz / +20℃ Max. (mΩ): 9
* Rated Ripple Current 100kHz / 45℃ Max. (mA):7700
Temperature Compensation Multipliers for Ripple Current
* Rated Volatage(Vdc): 2V
* T≤45℃: 1
* 45℃<T≤85℃: 0.70
* 85℃<T≤105℃: 0.25
