ZPCT2P5M331E 智威低電容器SZ Cap系列

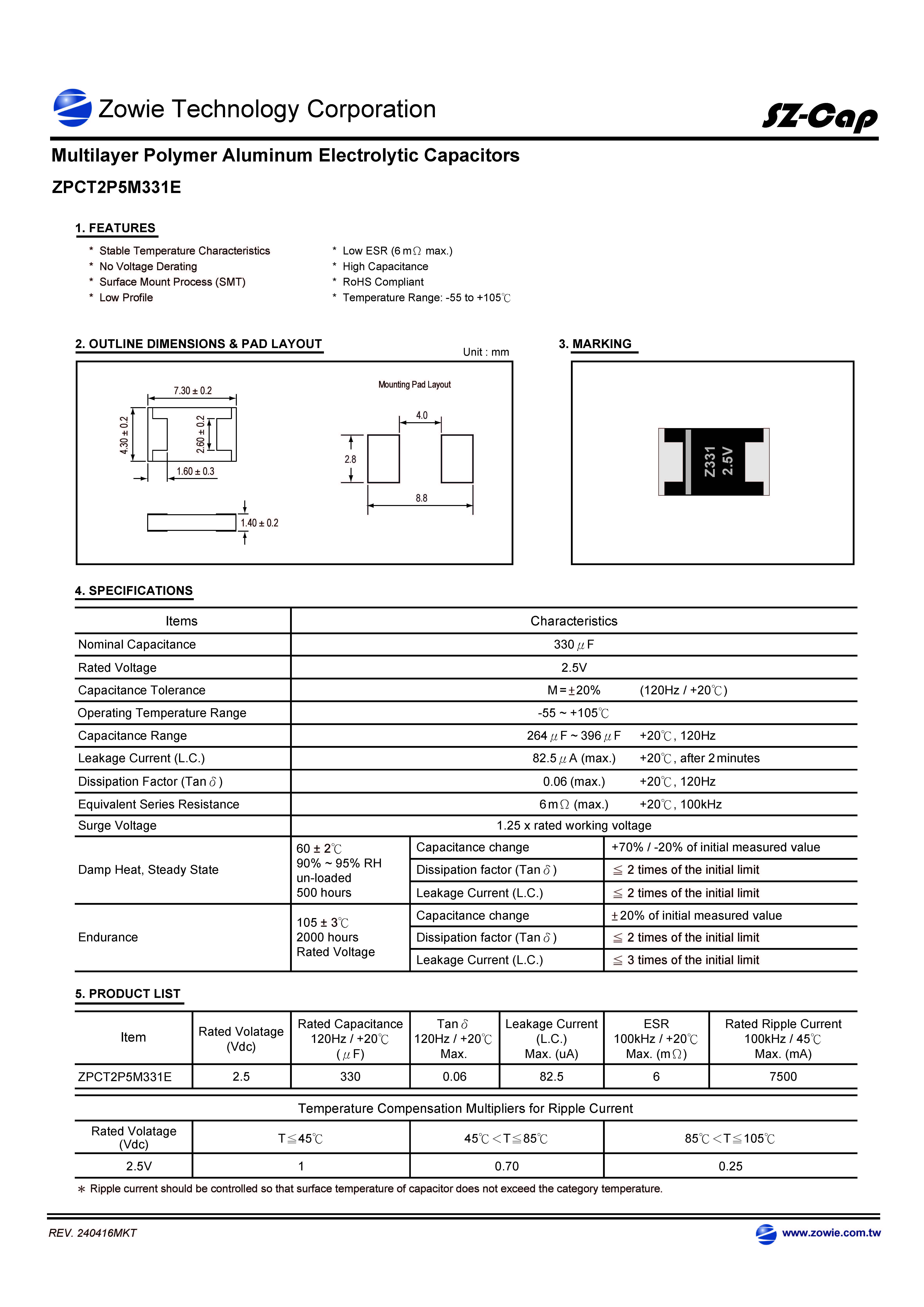

SPECIFICATIONS
* Nominal Capacitance: 330μF
* Rated Voltage: 2.5V
* Capacitance Tolerance: M = ± 20% (120Hz / +20℃)
* Operating Temperature Range: -55 ~ +105C
* Capacitance Range: 264μF ~ 396μF +20℃, 120Hz
* Leakage Current (L .C.): 82.5μA (max.) +20℃, after 2 minutes
* Dissipation Factor (Tan 8): 0.06 (max.) +20C, 120Hz
* Equivalent Series Resistance: 6mΩ (max.)+20C, 100kHz
* Surge Voltage: 1.25 x rated working voltage
* Damp Heat, Steady State
Capacitance change: +70% 1 -20% of initial measured value
Dissipation factor (Tan δ): ≦ 2 times of the initial limit
Leakage Current (L.C.): ≦ 2 times of the initial limit
* Endurance
Capacitance change: +20% of initial measured value
Dissipation factor (Tan δ): ≦ 2 times of the initial limit
Leakage Current (L.C.): ≦ 3 times of the initial limit
