| 型號： | PT2308 |
| 廠 商： | |
| 品牌/商標: | PCT/普誠 |
| 產品類別： | 集成電路/IC- AC/DC電源芯片 |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
原裝現貨供應 PT2308 PCT普誠 耳機驅動芯片
DESCRIPTION

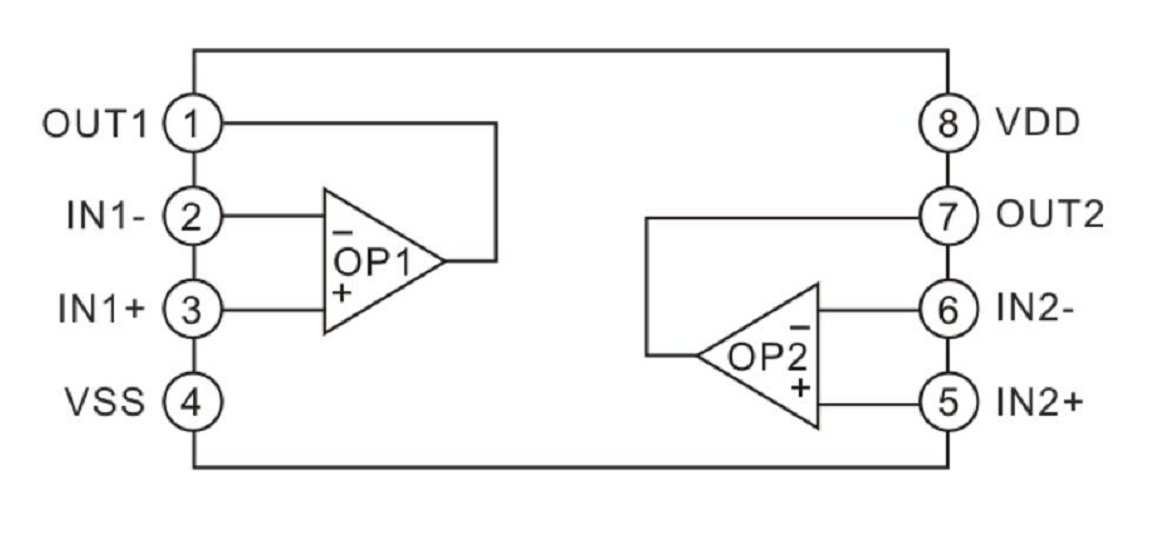

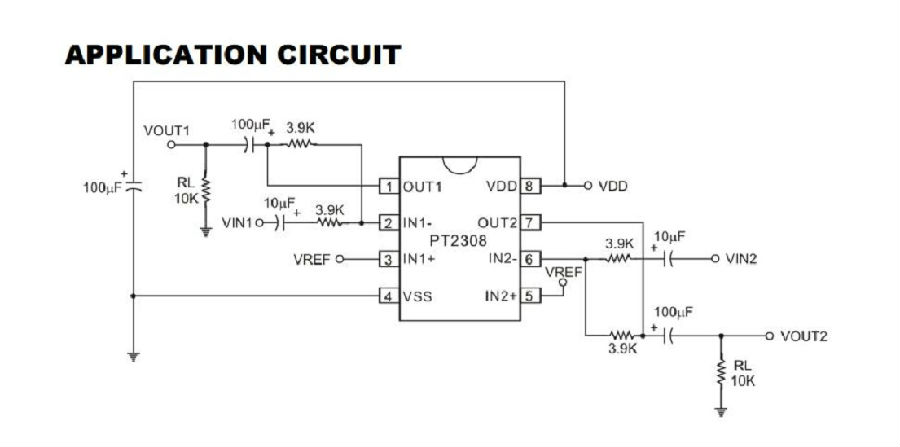

PT2308 is a Class AB stereo headphone driver chiputilizing CMOS Technology specially designed forportable digital audio applications. It is housed in an8-pin DIP or SOP package and is functionallycompatible with TDA1308. Pin assignments andapplication circuit are optimized for lower costeffectiveness and easy PCB Layout.
FEATURES
● CMOS technology
● Low power consumption
● Wide temperature range
● Excellent power supply ripple rejection
● High signal-to-noise ratio, S/N=110dB
● Low harmonic distortion, THD=0.001%
● Large output voltage swing
APPLICATIONS
● Portable digital audio
● Hi-fi audio system
● Walkman
● CD-ROM
