科瑞芯電子供應(yīng) PT2469 普誠雙H橋電機驅(qū)動器

DESCRIPTION

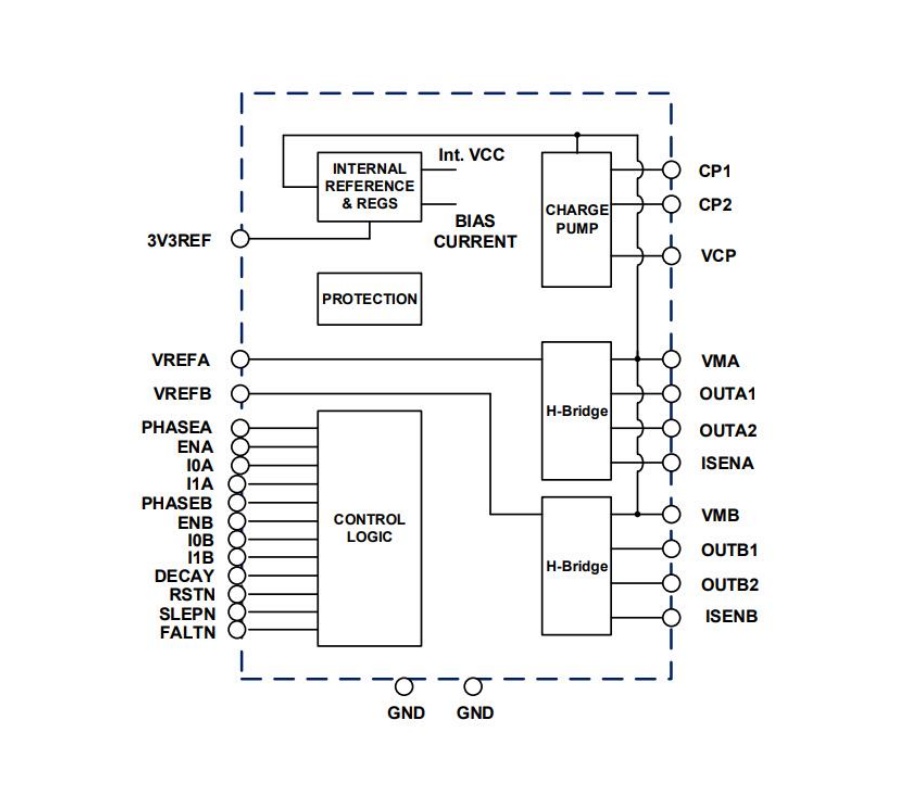

The PT2469 is a monolith integrated motor driverdesigned for printers, scanners, and home and officeautomated equipment. The two H-bridge drivers candrive a bipolar stepper motor or two DC motors. Theoutput H-bridge driver is consists by all of N-channelMOSFET. The PT2469 is allows driving up to 1.6Amaximum output current (VM=24 V, Ta=25°C).

An EN-PH type parallel logic control interface can beconfiguring the output switches ON-OFF of H-bridge,and motor current decay mode is also programming bythe parallel input port.

The PT2469 is available in a 28-pin HTSSOP packagewith thermal pad and in a 28-pin QFN package thermalpad.

FEATURES

● 8.2V to 40V Supply Voltage Range

● 1.6-A Maximum Driving Current at VM=24V (with additional heatsink)

● EN-PH Control Logic Interface

● Dual H-Bridge Driver with 4 Level PWM Curent Control

● Winding Current Decay Modes

- Mixed Decay

- Slow Decay

- Fast Decay

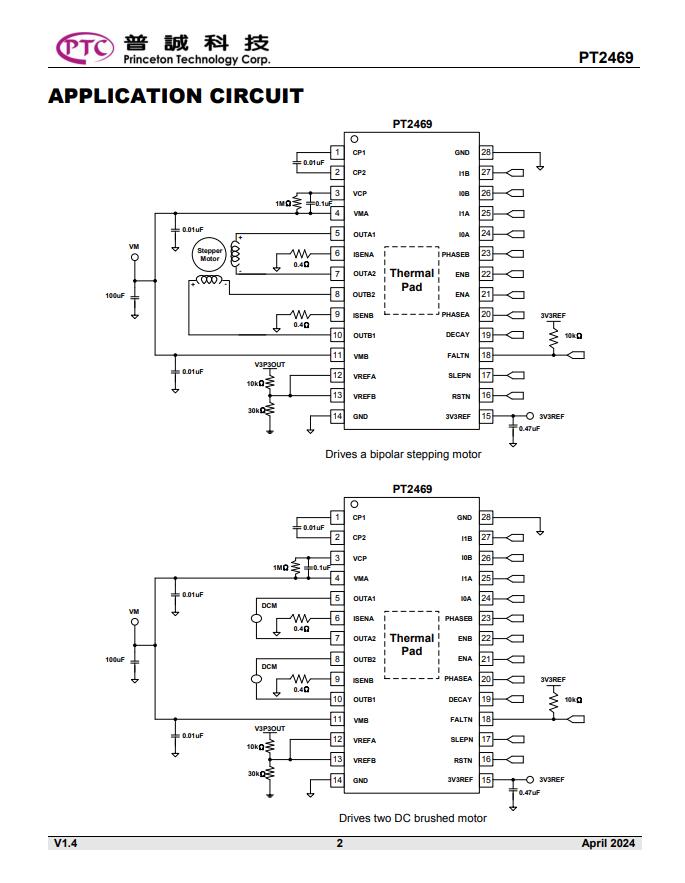

● Drives Single Bipolar Stepping Motor or Dual DC Motors

● Buit In a 3.3V Reference Voltage Output

● Low-Power Sleep Mode

● Protection Features

- Over Curent Protection (OCP)

- Thermal Shutdown (TSD)

- VM Under Voltage Lock Out (UVLO)

- Fault Indication Pin (FAULTN)

APPLICATIONS

● Automatic teller machines

● Video security cameras

● Printers

● Scanners

● Office automation machines

● Amusement machines

● Factory automation

● Robotics
