代理商供應 PT2476 PCT普誠 電機驅動器
DESCRIPTION

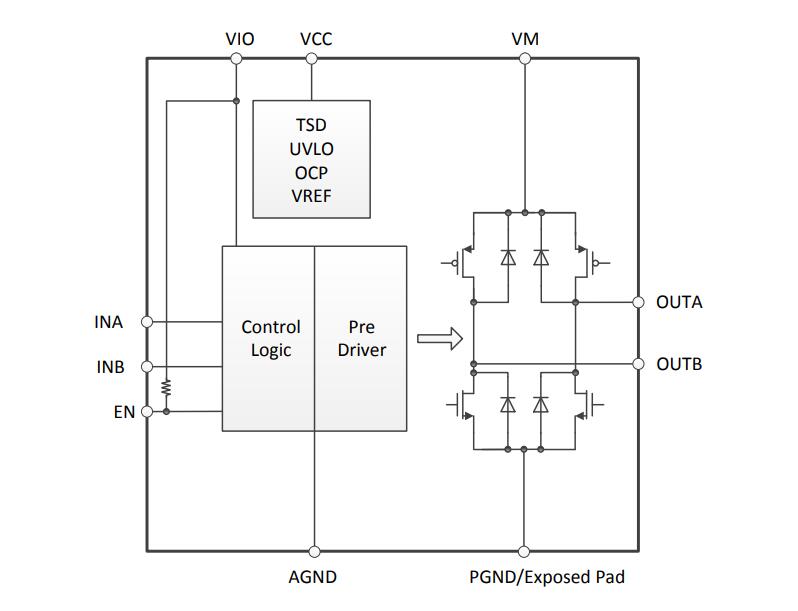

The PT2476 is 1 Full-On Drive H-Bridge channel withthree different packages. The driver features widerange operating from 2V to 24V and low powerconsumption by fast switching speed.
FEATURES
● It is low consumption by BCD process adoption
● One small package: HSOP8
● Wide power-supply voltage range:
- Control (VCC): 2.7V to 5.5V
- Motor (VM): 2.0V~24V
● High DC output current: Max.=2.8A
● Ultra low RDSON(TOP+BOT): 0.49QTYP@25°C, 1A
● Low current consumption when power-down: <0.05μA @25°C
● PWM control, Max. input frequency: 200KHz
● Operating temperature range: -40 to +85°C
● Charge-pump less
● Shoot-through current protection
● Built-in protection circuits
- Under Voltage Lock Out
- Thermal Shut Down
- OCP
APPLICATION
● Lens for DSLR
● Auto icemaker or dumper drive for refrigerator
● HV bi-direction DC Motor
● Intelligent electronic lock
