| 型號： | PA2460 |
| 廠 商： | |
| 品牌/商標(biāo): | PCT/普誠 |
| 產(chǎn)品類別： | 集成電路/IC- AC/DC電源芯片 |
| 聯(lián)系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
科瑞芯供應(yīng)原裝 PA2460 普誠LF功率放大器IC
Description

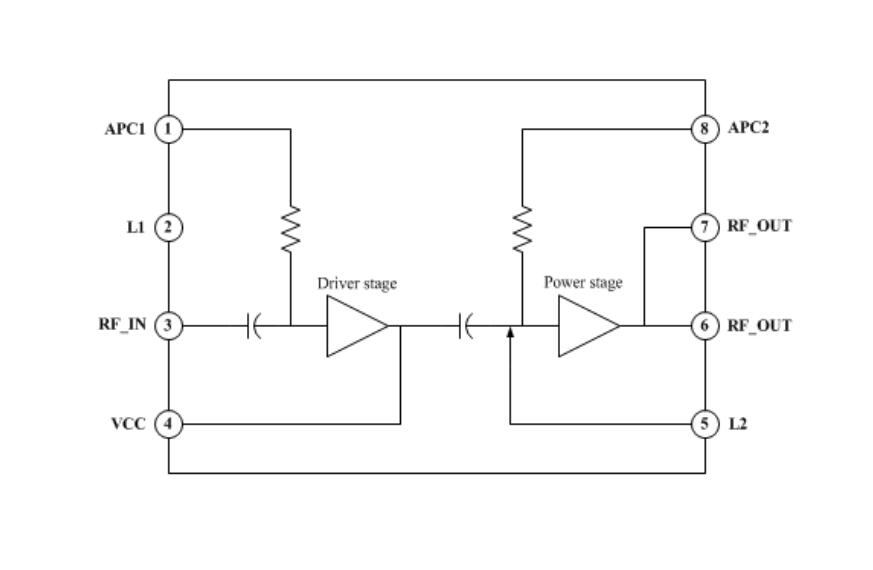

The PA2460 is a high-power and high-efficiency Power Amplifier (PA) IC for handheldapplications in the 130MHz to 500MHz band. The design is based on Gallium ArsenideHetero-junction Bipolar Transistor (GaAs HBT) process.
Features
● Single 2.7V to 6V Supply Voltage
● +33dBm Output Power for 3.5V to 6V
● 55% Efficiency

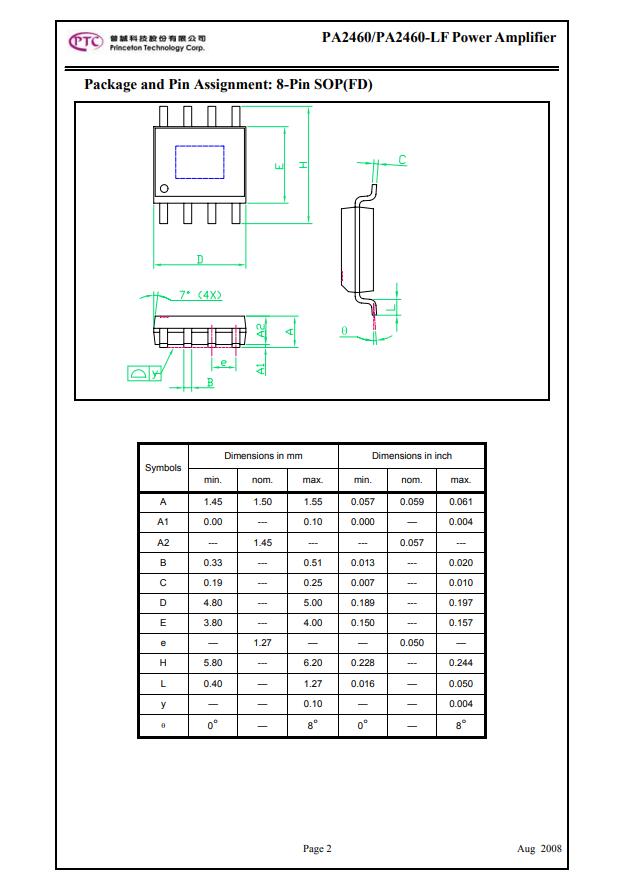

● 8-pin SOP(FD) package (5mm x 4mm)
Applications
● FRS, GMRS Handsets
● Commercial and Consumer Systems
● Portable Battery-Powered Equipment
● Long distance Remote Control
