PCT普誠 RS6513 異步降壓調(diào)節(jié)器

DESCRIPTION

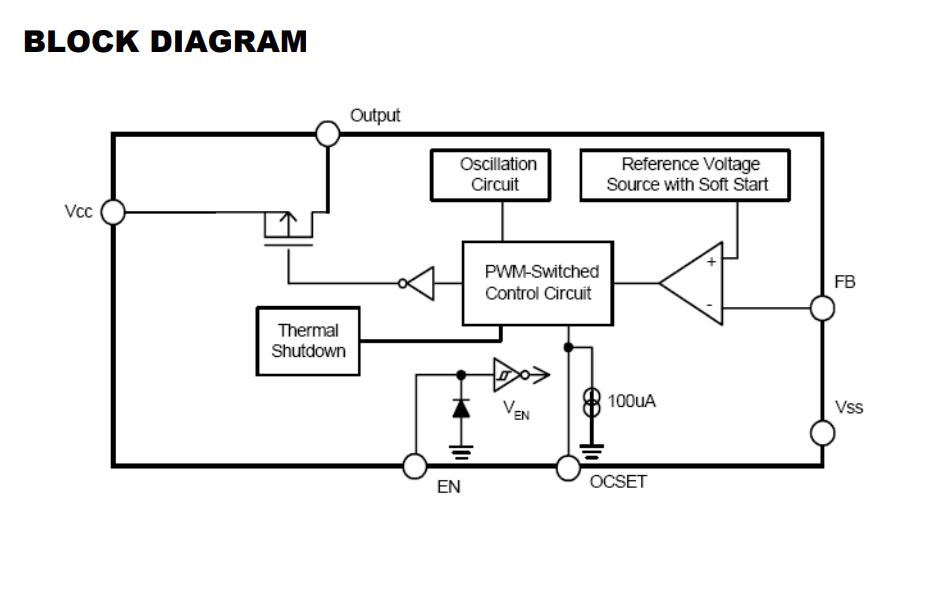

RS6513 provides low-ripple power, high efficiency,and excellent transient characteristics. The PWMcontrol circuit is able to vary the duty ratio linearly from0 up to 100.00%. This converter also contains an erroramplifier circuit as well as a soft-start circuit thatprevents overshoot at startup. An enable function, anover current protect function and a short circuit protectfunction are built inside, and when OCP or SCPhappens, the operation frequency will be reduced from350KHz to 30KHz. Also, an internal compensationblock is built in to minimum external component count.

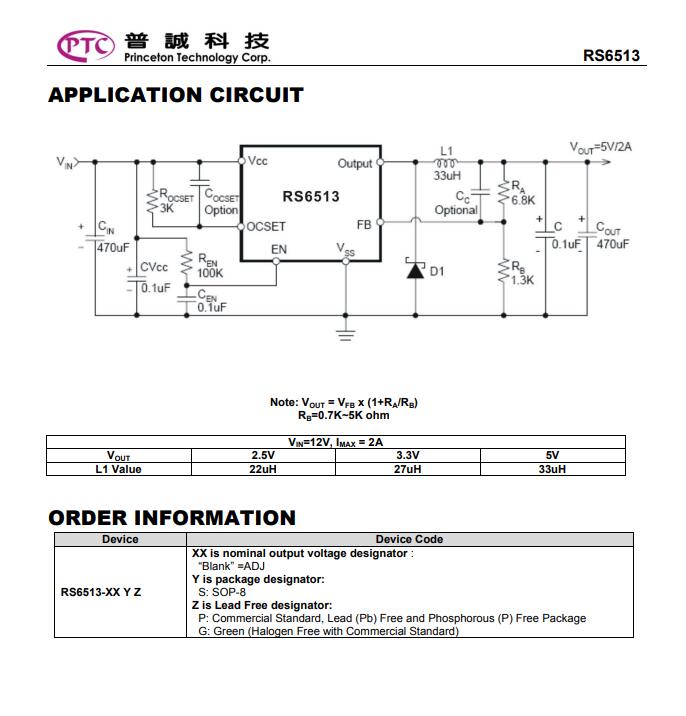

With the addition of an internal P-channel Power MOS,a coil, capacitors, and a diode connected externally,these ICs can function as step-down switchingregulators. They serve as ideal power supply units forportable devices when coupled with the SOP-8mini-package, providing such outstanding features aslow current consumption. Since this converter canaccommodate an input voltage up to 20V, it is alsosuitable for the operation via an AC adapter.

FEATURES

● Input voltage: 3.6V to 20V

● Output voltage: 0.8V to VCC

● Duty ratio: 0% to 100.00% PWM control

● Oscillation frequency: 350KHz typical

● Soft- -start, Current limit, Enable function

● Thermal Shutdown function

● Built-in internal SW P-channel MOS

● SOP-8 package

● RoHS Compliant and 100.00% Lead (Pb)-Free and Green (Halogen Free with Commercial Standard)

APPLICATIONS

● PC Motherboard

● LCD Monitor

● Graphic Card

● DVD-Video Player

● Telecom Equipment

● ADSL Modem

● Printer and other Peripheral Equipment

● Microprocessor core supply

● Networking power supply
