| 型號： | CJ6330A33P |
| 廠 商： | |
| 品牌/商標(biāo): | JSCJ/長晶科技 |
| 產(chǎn)品類別： | 集成電路/IC- AC/DC電源芯片 |
| 聯(lián)系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |

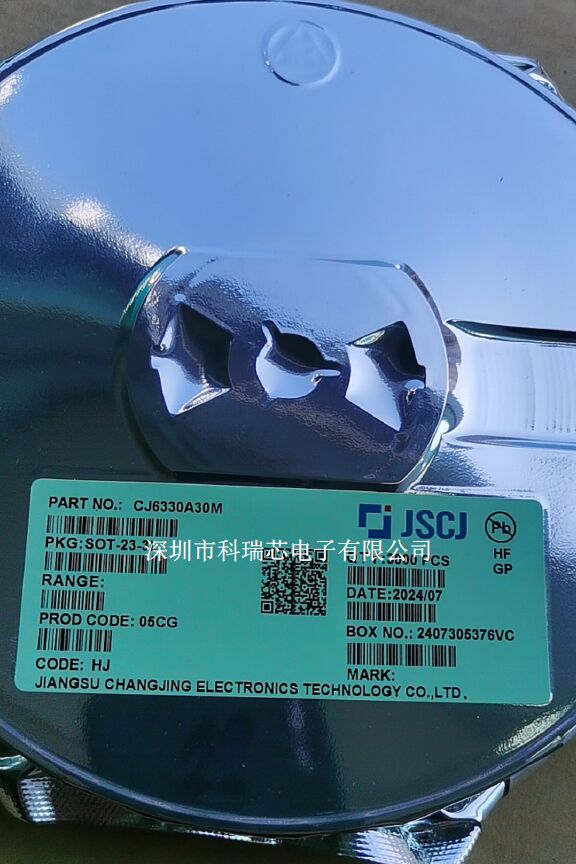

長晶 CJ6330A33P 低壓差穩(wěn)壓器 原廠原裝
INTRODUCTION
The CJ6330 series are a group of positive voltage regulators manufactured by CMOS technologies with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small.The CJ6330 series can deliver 300mA output current and allow an input voltage as high as 18V. The series are very suitable for the battery-powered equipments, such as RF applications and other systems requiring a quiet voltage source.
FEATURES
● Low Quiescent Current: 2μA
● Operating Voltage Range: 2.5V～18V
● Output Current: 300mA
● Low Dropout Voltage： 160mV@100mA(VOUT=3.3V)
● Output Voltage: 1.2~ 5.0V
● High Accuracy: ±2％/±1％（Typ.）
● High Power Supply Rejection Ratio: 65dB@1kHz
● Low Output Noise: 27xVOUT μVRMS (10Hz~100kHz)
● Excellent Line and Load Transient Response
● Built-in Current Limiter, Short-Circuit Protection
● Over-Temperature Protection
APPLICATIONS
● Cordless Phones
● Radio control systems
● Laptop, Palmtops and PDAs
● Single-lens reflex DSC
● PC peripherals with memory
● Wireless Communication Equipments
● Portable Audio Video Equipments
● Car Navigation Systems
● LAN Cards
● Ultra Low Power Microcontroller
