江蘇長晶 CJ9217T5 1.5MHz同步降壓轉換器

江蘇長晶 CJ9217T5 1.5MHz同步降壓轉換器
型號: CJ9217T5
廠 商:
品牌/商標: JSCJ/長晶科技
產品類別: 集成電路/IC- DC/DC電源芯片
聯系人: 顏先生/William
電話: 0755-82170220,21001680


產品詳情

江蘇長晶 CJ9217T5 1.5MHz同步降壓轉換器

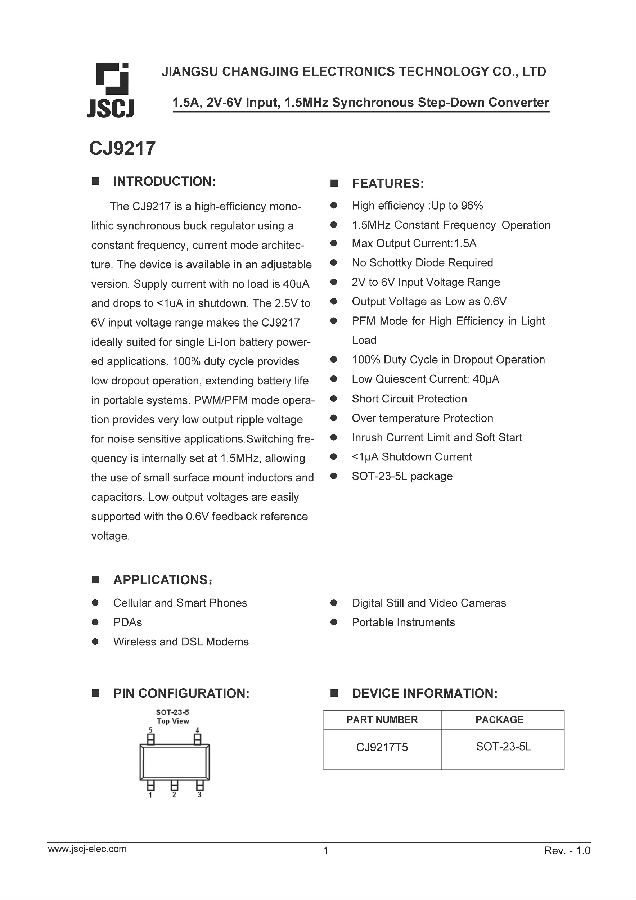

FEATURES

● High efficiency :Up to 96%

● 1.5 MHz Constant Frequency Operation

● Max Output Current:1.5A

● No Schottky Diode Required

● 2V to 6V Input Voltage Range

● Output Voltage as Low as 0.6V

● PFM Mode for High Efficiency in Light Load

● 100% Duty Cycle in Dropout Operation

● Low Quiescent Current: 40μA

● Short Circuit Protection

● Over temperature Protection

● Inrush Current Limit and Soft Start

● <1μA Shutdown Current

● SOT-23-5L package


APPLICATIONS

● Cellular and Smart Phones

● PDAs

● Wireless and DSL Modems

● Digital Still and Video Cameras

● Portable Instruments
