| 型號(PratNumber) | ETA9084 |
| 數量(QTY.) | 15000 |
| 廠家(Brand) | 鈺泰 |
| 封裝(Package) | ESSOP-10 |
| 批號(DC.) | 20+ |
| 聯系人(contact) | 顏先生/William |
| 電話(contact) | 0755-82170220,21001680 |
| PDF(PDF.) |
|
| 詢價(Inquire) |
上海鈺泰超低功率5V升壓變換器、20V線性充電器ETA9084 ETA9084E10，
科瑞芯現貨供應��！
The linear charger is fully integrated with constant current (CC) / constant
voltage (CV) control module and a charge FET. The integrated low power 5V Boost
converter is capable of delivering 0.5A current at 5V output. It can be shut down by
pulling theENBST pin low. The true shut down feature disconnect output from the BAT
thereby further decreasing the system standby power. There are 4 LEDs driven by 3
output pins to indicate the charge/discharge status and battery level. The ETA9084 is
ideal for applications such as a TWS charging cradle that requires low standby power
and small PCB space.

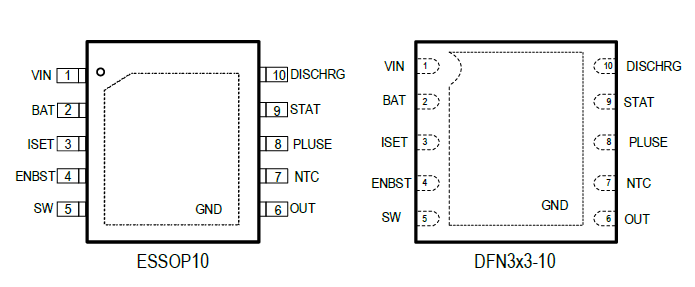

ETA9084E10 ESSOP10
ETA9084D3K DFN3x3-10
產品應用：
TWS BT earbuds charge case
Bluetooth application
Battery powered IOT module
Power Bank
| 型號(PartNumber) | 數量(QTY.) | 廠家(Brand) | 封裝(Package) | 批號(DC.) | 描述(Description) | |
| IP2501 | 30000 | INJOINIC/英集芯 | SOT23-6 | 24+ | 英集芯IP2501，超低功耗的400A高效同步升壓轉換器，采用SOT23-6封裝，可應用在一節、兩節 |
|
| W532-20W-H | 60000 | INJOINIC/英集芯 | QFN5x5-32 | 24+ | 英集芯W(wǎng)532-20W-H，一芯多充無線充電發射端SOC，采用QFN5x5-32封裝，可應用在移動電 |
|
| IP6862 | 55000 | INJOINIC/英集芯 | QFN6x6-48 | 24+ | 深圳市科瑞芯電子供應——英集芯IP6862，一芯多充無線充電發射端SOC，采用QFN6x6-48封裝 |
|
| IP6833 | 50000 | INJOINIC/英集芯 | QFN4x4-28 | 24+ | 英集芯IP6833，符合QI標準的5W無線充接收芯片，采用QFN4x4-28封裝，可應用在與WPC |
|
| IP6829 | 45000 | INJOINIC/英集芯 | QFN5X5-32 | 24+ | 英集芯IP6829，支持PD輸入全集成5W/7.5W/10W/15W無線充電發射SOC，采用QFN5 |
|
| IP6826 | 40000 | INJOINIC/英集芯 | QFN5X5-32 | 24+ | 深圳市科瑞芯電子供應——英集芯IP6826，支持PD輸入全集成15W無線充電發射SOC，采用QFN5 |
|
