Rail-to-Rail Operational Amplifiers   --G1582RD1U

General Description

The G1582 consists of one independent, high gain,

internally frequency compensated operational amplifiers

which was designed to operate from a single

power supply over a wide range of voltages. Operation

from split power supplies is also possible. The input

common mode range of the G1582 can be beyond the

rails, and the G1582 is with rail-to-rails output voltage

swing. The quiescent current is 2.2mA, typically.

The G1582 also feature fast slewing and settle-

times, as well as high output drive capability of

source 1300mA /sink 850mA. These features make

this amplifier ideal for use as reference buffers for

TFT-LCD. Other applications include battery power,

portable devices, and anywhere low power consumption

is important.

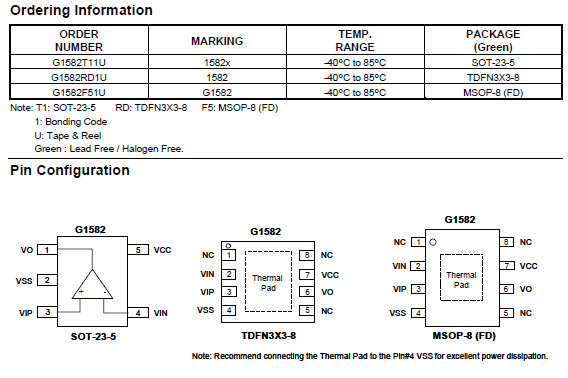

The G1582 is housed in a SOT-23-5, TDFN3X3-8 &

MSOP-8 (FD) package.

Applications

 Portable Equipment

 LCD-TV Equipment

 Battery-Powered Equipment

 ASIC Input or Output Amplifier

 Low Power/Low Voltage Applications
