1.產品簡介

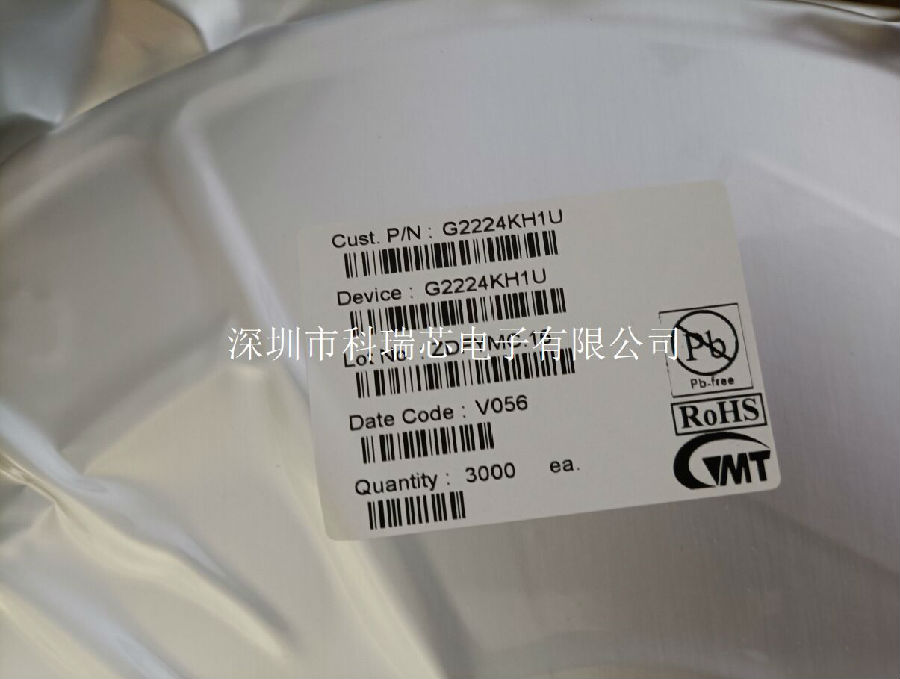

G2224KH1U TDFN3X4-14 產品主要應用于智能手機上

General Description

The G2224 is a high efficiency single inductor Buck-

Boost converter which can supply the load current up

to 4A. It provides auto-transition between Buck and

Boost Mode. The G2224 operates at 2.4MHz and it

can also be synchronized with external frequency from

2.2MHz to 2.6MHz. DC/DC converter operates at

Pulse-Skipping Mode at light load. The Power Save

Mode can be disabled, forcing the G2224 to operate at

FPWM Mode. The output voltage is programmable

using an external resistor divider, or is fixed to 3.3V

internally. The load is disconnected from the VIN

during shutdown.

The G2224 is available in TDFN3X4-14 package.
