M2202BK51U    TDFN3X3-8

General Description

The M2202 is a high frequency, synchronous rectified,

single phase dual MOSFET driver. Each of the drivers

is capable of driving a 3000pF load with fast

rising/falling time and fast propagation delay. This

device implements bootstrap diode on the upper gate

with only a single external capacitor. This reduced

implementation complexity and allows the use of higer

performance, cost effective, N-MOSFETs. Adaptive

shoot through protection is integrated to prevent both

MOSFETs from conducting simultaneously.

The Tri-state PWM input can turn off both high-side and

low-side MOSFETs.

Applications

 High Frequency Low Profile DC/DC Converters

 High Current Low Voltage DC/DC Converters

Features

 Drive Two N-MOSFETs

 Adaptive Shoot-Through Protection

 5V~20V VCC operating voltage

 1.2A source current, 1.8A sink current

 Adjustable Dead-Time of Driver

 Tri-State PWM Input for Power Stage Shutdown

 Output Disable Function

 Embedded Bootstrap Diode

 VCC POR Feature Integrated

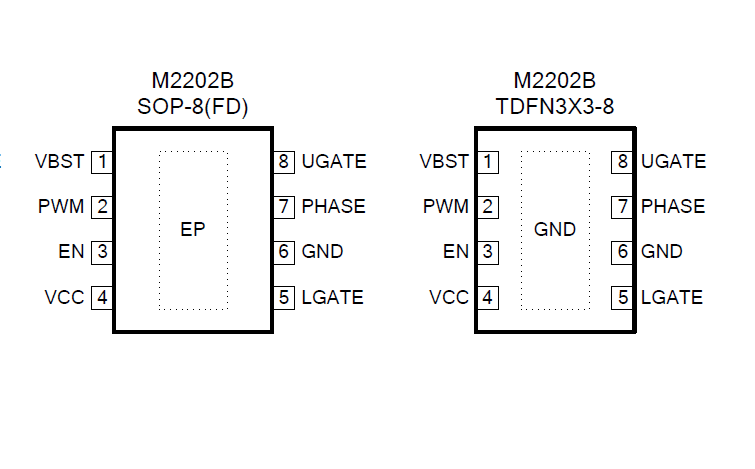

 MSOP-10, SOP-8 (FD) ,TDFN3X3-8 Package.
